1 Channel
Installation with water heater contactor
Installation with digital time switch

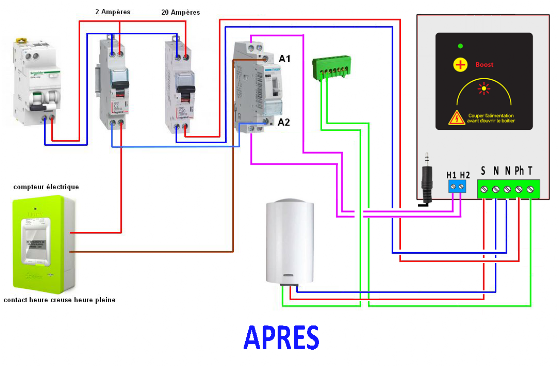

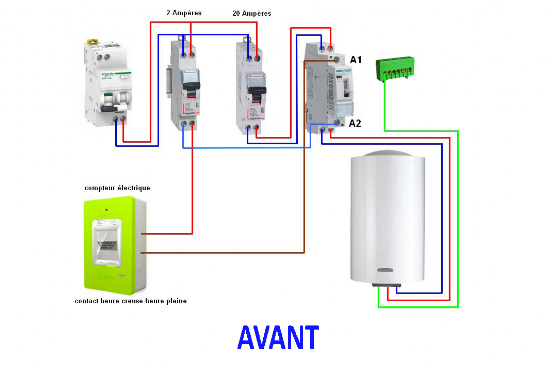

Change to make if you have a water heater contactor:
TECHNICAL CHARACTERISTICS
Rated voltage: 230VAC single phase 50Hz
Voltage range: 205 – 260VAC
Frequency range: 48 to 60 Hz
Maximum allowable current in measurement: 90A (20,000W at 220V)
Consumption at rest: 27 mW (at 240VAC)
Transfer rate: 99.7% (at maximum power)
Maximum load: 600A for 10ms
Maximum output current: 13A
Routing accuracy : 10 to 30W
Boost function: 120 minutes of power at full power
Operating temperature: 0 to 60°C
Storage temperature: –20 to +75°C
Humidity: 10 to 85% non-condensing. Indoor installation only
Insulation: Transformer: 2.5 kV - Optocouplers: 3.75 kV - Probe: 6 kV
Export Threshold: 0W
Maximum power dissipated at 3 kW: 20W
Internal fuse: 250V 200mA
Dimensions: 15cm x 12cm x 3.5cm
FUNCTIONING
As soon as a surplus of production in relation to consumption is detected, the energy is automatically directed to your hot water tank.
"Boost" FUNCTION
Switching on the "Boost" function energizes the output for 120 minutes.
Pressing the button again cancels the "Boost" function and returns to normal operation.
